This is a quick reference, now let's move on to the details:

Solving problems, malfunctions, glitches of MMS on Lada Granta, Priora, Kalina, Vesta

The radio (multimedia system - MMS) of Lada cars is AvtoVAZ’s first step in the direction of standard multimedia; the plant has not previously produced such devices. Along with the wide functionality of MMS, there are also disadvantages that we will solve together in this article.

Unlike foreign cars, the standard MMC Lada can be modified. To expand the capabilities of the radio, it is flashed. This procedure does not always end well; sometimes after flashing the firmware, the radio does not boot, but freezes on the “LADA” logo. Solution to the problem:

Make sure nothing is inserted into the USB port.
Try turning off the power to the MMC (remove the battery terminal) for 5 minutes.
Create an empty explorer.txt file in the USB root. Insert the USB and press and hold the Settings button, the WinCE desktop should open.
Try formatting the SD card to a different file system (FAT32/exFAT/FAT) and reflash the radio again.
Use another SD card to flash the radio firmware.

Malfunctions were noticed in the operation of standard navigation - it does not search for satellites. Or an error appears: “Application MMC.exe encountered a serious error must shut down.” Or the radio screen has turned white while the radio is working. Or, on the contrary, the backlight or MMS sound disappeared. Or, when trying to connect MMS to an iPhone or iPad, both devices recognized each other, but the music did not play and the radio was frozen. In all cases we try:

restart MMS.
Disconnect the battery terminals for 5-10 minutes.
try to flash the MMC with the stock (original) firmware.
reset MMC to factory settings.

To do a hard reset of the MMC (reset to factory settings), when it is not possible to enter the settings, press the Power button and hold it for 15 seconds, after which all MMC settings should be reset.

The radio sees files on the USB-Flash, but does not play them. MMC may not support audio or video file format (see specifications),

If MMS does not turn on. You will need to remove the radio and check the fuse on the back of the device and the reliability of the connections of the connectors with the wires.

Some car enthusiasts are concerned that the MMC gets very hot. This is a normal situation.

These are not all the problems of MMC. Some malfunctions may be defective, in which case you will have to contact the dealer for warranty. If you repair the radio yourself, you should not rely on the warranty.

Some features that will help solve problems:

go to the desktop - hold SETTINGS for more than 15 seconds; access to the desktop in MMS with built-in navigation (instructions for site users): To download files you need to log in to the site
reboot the radio (reset) - for Lada Kalina 2/Priora - hold down the power button for 15 seconds, for Lada Granta hold down the volume button for 15 seconds).

In some cases, installing standard firmware (for Granta/Kalina/Priora or Vesta) helps solve problems.

Have you encountered glitches with standard MMS? Were you able to solve them yourself or did you have to apply under warranty to solve the problems? Let us remind you that you can connect an amplifier and a subwoofer to the MMC.

Basic faults

The desire to install 16 cm speakers on the Priora arises due to the poor sound quality of the standard speakers. In addition to the complete lack of music due to faulty wiring, Prior owners with a factory speaker system have to deal with:

Wheezing.
Hissing at high volume.
Not loud enough.

The problem can be solved by installing high-quality audio speakers, primarily in the front. This upgrade significantly improves the sound of the audio system without requiring significant costs.

Manufacturers and prices of analogues

Car audio systems are varied. Popular among Priora drivers:

Mystery MJ-650, cost 2000–2500 rubles.
Alpine SXE-1750s – price from 3000 rub.
Kicx STC 6.3 – price 3000–3500 rub.
Pioneer TS-A1600C, Price from 4000 rubles.
Morel Maximo Coax 6 – approximately 4000 rub.
Hertz DSK 165.3 – about 5,000 rubles.

Prices are for a set of two speakers. Of course, this is not a complete list. The choice of audio system is limited by the desires and capabilities of the car owner.

Search

Not long ago, AVTOVAZ began producing the Lada Kalina with a head unit. Previously, radio installation in Kalina was offered only by dealers in car showrooms as an additional service that was paid for by the client. Now the buyer has a choice between installing a music system with his own hands or buying a car with a head unit already installed.

Kalina sound installed

Technical characteristics of the head unit in the Kalina Lux selection:

2DIN touch screen;
presence of stereo radio;
ability to play multimedia files;
ability to synchronize with a mobile phone;
works with bluetooth.

Device development - WindowsCE 6.0. RAM - 128 MB. 5th generation CPU. These features cannot but please fans of AvtoVAZ products, because now driving a car has become much more enjoyable.

Kalina Radio Recorder: The Norma's technical specifications differ from the luxurious lack of a touch screen, Bluetooth connectivity and mobile phone synchronization. The size of the radio is 1DIN, removable panel. Some trim levels have 4 speakers and an antenna. The radio receives a wide range of radio waves, can play discs of different sizes, and work with USB drives and SD cards.

It's also funny that the car with the walkie-talkie went through all the special tests before going to the masses. They have been tested at extremely low and very high temperatures, and electrical compatibility has been verified by simulating the radio interference range.

When choosing a radio in your car, you must decide which media to use as the main one. This will save money. If, for example, a car enthusiast is sure that he does not need a CD or tape recorder, then why pay for a radio using these functions.

How to install a 2 din radio receiver Pioneer AppRadio SPH-DA110 in Lada Granta (OK)?

For those who choose CD players, there is one small drawback that manufacturers are trying to combat - loss of music fragments due to shaking while traveling. But progress is not in place, and the mechanics are improving. Having an ISO in the car and, accordingly, in the audio device will simplify the connection. The presence of a USB adapter allows you to play music from different media.

When choosing a radio, you should pay attention to the power characteristics. They have the most and a low threshold

Higher power is rarely used except in extreme situations. The choice should be made according to the rated power, in other words, the one that is used in most cases. Often, manufacturers indicate only the highest values on the packaging, so when choosing, you should carefully consider the annotation (passport), and not the box.

Correct connection of the radio

Connecting a radio with your own hands is not difficult, but you need to do it correctly. For example, so that the radio does not drain the battery when parked for a long time and it is possible to use the radio when the ignition is turned off. Let's look at several options for connecting a car radio. Let's start with the connectors that are used in radios.

Car radio connectors are:

Connecting a radio via an additional button

To prevent current leakage, place a button in the cut of the red wire:

Button in the section of the red wire of the radio;
The button switches between constant “plus” and after ignition;
Through the alarm.

With the first option, I think everything is clear: just a regular on/off button is hung in the cut of the red wire on the radio. Thus, your radio always works, but if you decide to leave the car in the parking lot for a long time, then simply turn it off. button to supply current to the radio. The second option is when an emergency button is used instead of a regular button. You will use the second emergency button to switch the power mode of the radio:

The button is pressed - power is supplied to the radio through a constant plus
The button is not pressed - power is supplied to the radio through the plus from the ignition

Example of connecting a car radio:

The radio backlight wire to the cigarette lighter backlight wire.
Plus after ignition from the clock block (orange wire)
A permanent plus with a battery or cigarette lighter.
Ground "-" from the cigarette lighter

Third option: you can install a simple circuit that will supply a plus and automatically disconnect it from the alarm. If the car has a two-wire solenoid with activation for closing and opening by changing the polarity for each of these operations, then it should work like this: When the doors are opened, a positive pulse from the solenoid is sent to relay P1, and the relay will operate and actually go into self-retaining mode, providing power from the battery through the terminals of its contacts and relay P2 and connecting the radio to the power supply. If there is a positive pulse during closing, relay P2 will operate, and the power supply circuit of relay P1 and the radio will break, the radio will turn off, and the relay will go into a de-energized state. But this scheme also has a minus - it is increased power consumption due to the additional relay P1, which will always be turned on along with a working radio.

Pairing devices

To set up Bluetooth pairing, you need to know how to connect your Android to the radio. To do this, you need to insert the AUX gadget into the desired connector and turn it on by pressing the corresponding button. If the Bluetooth adapter is built-in, go to the car radio settings and activate this option.

To use a Bluetooth audio player, you must activate the BT AUDIO signal source by following these steps:

Enter the initial settings menu.
Use MULTI-CONTROL to find BT AUDIO.
To turn on the BT AUDIO source, press MULTI-CONTROL.

If you want to add additional features (built-in or optional microphone) to your Pioneer radio using Bluetooth wireless technology, select BT MIC from the initial settings menu using MULTI-CONTROL.

After this, press MULTI-CONTROL again to select the optimal settings:

if there is a built-in microphone - ! BT MIC:INT;
for the optional microphone connected to this radio - ! BT MIC:EXT.

We'll tell you how to make bluetooth into a radio using an adapter with your own hands. The main advantages and disadvantages of working via an adapter, as well as compatibility with other devices.

Radio MMS VAZ 2192 Kalina 2, Priora 2, standard assembled Luxury

Dear customers, in order to avoid errors when sending the MMC radio VAZ 2192 Kalina 2, Priora 2, standard assembled, in the “Comment” line, indicate the model of your car, year of manufacture. Currently, depending on the vehicle configuration, several types of 2 din radio can be installed.

The first is called “2 DIN audio system, without CD drive, without TouchScreen”, the other “multimedia system without CD drive, with a 7-inch display with TouchScreen” (MMC).

The MMC VAZ 2192-7900200 radio kit includes:

1. Radio 2192-7900200-00

2. Multimedia display 2192-7900100-00

3. Connecting harness for display and radio 2192-7905030-00

It is possible to install this radio with an LCD display instead of the standard radio in the “norm” configuration.

Screen (multimedia display) 2192-7900100 is separated from the radio buttons 2192-7900200 - MMC Lada Kalina 2 (luxury) and Lada Priora 2 (luxury)

The central console of the Lada Priora (pre-restyling) was initially designed for a single-din player; the height of its location in the console did not matter. In the reystaling, this problem has been solved - the monitor is installed as high as possible, on the dashboard itself.

Installing the MMC 2192 multimedia system on the center console of the Lada Priora (pre-restyling) is the most suitable option in terms of functionality, price, reliability and ease of installation.

This multimedia system MMC 2192 with a 7-inch screen is installed on Kalina 2, Priora 2, and can also be installed on Lada Priora and has the following properties:

1. Playing music files + radio;

2. Availability of navigation;

Displaying important information on displays (engine temperature, fuel remaining, etc.)

4. Possibility of connecting a rear view camera;

5. Bluetooth and normal and Hands Free;

6. Ability to play video files;

7. Connecting multiple devices.

To navigate the MMC 2192 multimedia system, you will need the following equipment:

2. 8 GB flash drive with cards;

3. Firmware for radio MMC 2192

The set is formed individually

5. Wire for connecting a mini ISO rear view camera with a tulip;

CAN bus for displaying important information on the MMC 2192 display (engine temperature, fuel remaining, etc.); 7

Wire to amplifier;

7. Wire to the amplifier;

8. USB hub is a small device that has several USB ports. It connects to the USB port of the MMC 2192 and makes it possible to use several USB devices.

MMC 2192 runs on the Windows CE 6 operating system. This is specially optimized for devices with a minimum memory capacity of 128MB. Turning on the radio does not take much time (about 2-3 seconds).

The MMC 2192 radio supports audio formats: MP3, WMA and WAV. While a tune is playing, the display shows information about the album, artist, and cover art. You can adjust the shades of sound using the equalizer (there are 6 pre-programmed settings for Jazz, Rock, Voice, etc.).

The display of the MMC 2192 Priora and Kalina radio is resistive. Unlike a capacitive screen, it is able to work without failures in more severe conditions, such as frost or heat. The display itself is quite bright and pressure sensitive. Due to the lack of a visor, there is glare in sunny weather, but not critical.

The MMC 2192 radio supports audio formats: MP3, WMA and WAV. While a tune is playing, the display shows information about the album, artist, and cover art (if any). You can adjust the shades of sound using the equalizer (there are 6 pre-programmed settings for Jazz, Rock, Voice, etc.). The sound quality is good, quite clear, without audible cuts in the highs or lows.

MMC 2192 supports only one video format: WMV with a resolution of 320*240px. To play video files you will have to use a converter, for example, Xilisoft Video Converter Ultimate. It will not be possible to play a video without conversion, for example, in 720p resolution, the picture will slow down, and the sound will lag behind the video, due to the insufficiently powerful processor.

The MMC 2192 radio is capable of opening photos, supported formats: JPEG, JPG, JPE, BMP, GIF, PNG.

The standard MMC 2192 allows you to connect your phone via bluetooth and download the phone book. In addition, it is possible to play music from your phone. Disadvantage: if you use several phones, it will be difficult to save settings

You can connect a USB-Flash to the MMC 2192 radio, which must have the FAT16 or FAT32 file system. The radio connector is located on the back of the radio, which you will have to move yourself to a specially designated place in the glove compartment.

Why do you need spacers for 16 speakers: installation

Spacers for the speakers prevent the transfer of vibration from the speakers to the metal of the body, and allow you to do without cutting the metal. Because there is enough space inside the front doors of the Priora. When installing speakers with a diameter of 16–17 cm at the front, the use of a spacer with a thickness of 19 mm will allow you to avoid metalwork. Some auto stores sell ready-made spacers for 16 cm speakers for Lada Priora. But it’s easier to make the necessary parts yourself.

Spacers for the speakers are cut from plywood or other wood material. If there are no sheets of the required thickness, you can splice several parts together using screws and glue. Even when installing a commercial spacer, you may need to change its shape. Trim some places so that it fits tightly to the metal of the front door and does not interfere with the fastening of the trim and other parts. Therefore, even when manufactured independently, this element must be adjusted to the location.

Fastening to the door is done with self-tapping screws. If the product turns out to be massive, you can make a bolted connection. Then the spacer is covered with noise-insulating material, and an audio speaker is attached to it.

Installing audio speakers with a diameter of 16 cm on the front doors of the Priora and the correct placement of additional audio components throughout the cabin will improve the sound quality of the speaker system without significant expenditure of money and time. Anyone can do this.

Kalina-2 Norma standard radio, buttons + text screen, and also a video with its review

Having mastered the production of the Lada Granta in the liftback body, VAZ began supplying a standard radio (not touchscreen) in the Norma+ car configurations.

Let us immediately note that the radio tape recorders intended for Kalina-2 and Granta look the same, but their mounting is different, so these devices are not interchangeable.

Looking ahead, let's say that a review made by the owner of a car with a similar radio is presented on video. Now let’s talk about what exactly VAZ is offering today to owners of Kalin and Grant in the Norma+ configuration.

A few words about the radio of the “normal Kalina-2”

When looking at the “device”, which AvtoVAZ designates with the numbers 2190-7900010-40, it immediately becomes clear that installing such a device in a standard 1DIN compartment will not work. VAZ cars in the “Norma” configuration come from the factory with an empty compartment (its height is 1DIN), and in the “Norma+” radio tape recorder occupies the entire central part of the console.

That is, the owner has the following choice: you can install a standard VAZ radio, but then the easy-to-use shelf will disappear, or you can look for and install a unit of standard height. The VAZ radio does not fit into the 1DIN high compartment.

There is no touch screen on it, but under the “twist” there is a whole array of plastic buttons.

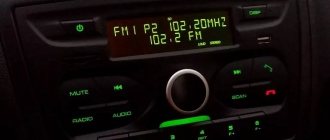

VAZ push-button radio for Kalina-2

Such a radio, as we see in the photo, can be found in the only configuration of the Kalina Cross. The “device” in question differs from the Granta radio in the presence of a frame with holes.

There were rumors about the release of specific units intended only for crossovers, but in the end everything turned out to be simpler - VAZ always ordered radio tape recorders from Itelma, and this tradition was continued.

First of all, let's say that the main task of a built-in radio is to play music. To do this, it provides two hardware ports (USB, SD) located on the front panel.

Radio stations can be switched using the lower buttons, and the device can also perform the functions of a Bluetooth headset - it’s not for nothing that there are “Receive” and “End End” buttons.

The amplifier power is standard, the number of channels is four.

Advice for future and current owners of VAZ push-button radios

The release of standard VAZ “devices”, devoid of an expensive “sensor”, has been expected for a long time. Back in the first half of the year, we were told that such a unit should appear in the fall.

As you can see, VAZ was embarrassed to build a graphic display into the radio, and all information on the screen is displayed in standard symbols. The only available backlight color is emerald (there will be more of these colors in crossovers).

The device is a “turn on and listen” device, and in standby mode the display displays the time.

The fact that the manufacturer placed the USB port right on the face of the radio is not bad. Now owners have the opportunity to quickly connect a USB drive, or use the standard port as a power source.

Where is the diagnostic connector for the VAZ-2112: photo and video

Any VAZ-2112 car is equipped with a system for self-diagnosis of faults, which can inform the owner about the presence of any fault without visiting a service station.

Such a system works by connecting special diagnostic equipment to it and further reading and decoding errors.

When is diagnostics required?

The first sign that you should diagnose the car system will be the blinking of the CHECK ENGINE lamp located on the instrument panel

Please note that the presence of errors in the system will be the fact that after 10 seconds after starting the engine, the warning light will not go out and the error data will be stored in the ECU memory

The error is indicated by an arrow.

Where is the connector?

In order to read all the fault codes that have arisen using diagnostic equipment, you will have to get to the diagnostic connector, which is located directly under the instrument panel console on the left side.

The location of the diagnostic block is indicated by an arrow.

Marked with an arrow

You will detect it immediately as soon as you look at the approximate area of its location, since its characteristic shape is very specific.

Features of the diagnostic connector

Standard 12-pin connector for diagnostics

Depending on the year of manufacture of the car, the connector can be 10-pin or 12-pin. To connect to it you will need to make an adapter.

We make wiring

You can also throw a separate wire, but this is “collective farm”.

Connection diagram of a 12-pin connector to a standard diagnostic adapter Connecting a 12-pin connector to a standard diagnostic adapter Connecting a 12-pin connector to a standard diagnostic adapter another angle

Answers (2)

Of course you can, especially if the sizes are the same. Look at the photo for example.

You need to remove the climate control panel (held on by latches) and so on. It’s better to do this at a radio installation service.

MMS from Lada Grants

There is nothing complicated, even if you want to install a single-din radio instead of a double-din or vice versa, buy a special frame and, of course, the radio itself and that’s it)

Which one do you have now and which one do you want to install?

On VAZ cars of an earlier year of production, such as 2101, 2102, 2106, etc., such a concept as a “standard radio” was absolutely alien. But, as they say: time does not stand still, and along with it, the development of the domestic automobile industry does not stand still either. On new models of Lada cars, especially Kalina, Grant, Vesta, etc., the radio came already from the factory, and not just in the form of a music player, but in the form of a device with the ability to play video and photo formats, and of course sound.

The most popular standard radio, which was most often installed on Lada Kalina and Kalina 2 cars, is called “MMC”. You can understand what its advantages are and why it has earned such fame by reading this article.

MMS screen

The display on the Granta and Kalina radio is resistive. Unlike a capacitive screen, it is able to work without failures in more severe conditions, for example, frost or heat. The display itself is quite bright and pressure sensitive. Due to the lack of a visor, there is glare in sunny weather, but not critical.

Connecting a 2 DIN radio to a standard place in the car

How to connect a 2 DIN radio with aliexpress in a car

DIN stands for "Deutsche Industriele Norme" - or "German Industrial Standards". The standard dimensions of a radio tape recorder installed in the car's standard socket. These standards are used by all manufacturers of cars and car radios (or almost all), at least all Chinese radios supplied to us from aliexpress, all of them are assembled according to 1 DIN standards, and more often - 2 DIN. By the way, 1 DIN is the size of the radio, the width x height of which is 180x50mm. 2 DIN - 180x100mm, with the installation depth of all DINs being 160mm. There is also a very rarely used standard for radio dimensions 1.5 DIN - 180x75mm. But finding such a radio is very rare, so today we will consider the usual size of a multimedia player - 2 DIN.

So, in order for us to connect such a radio, if we previously had a 1 DIN radio in the car, we will have to remove the old radio and install the ears on which the radio is attached under the dashboard from the new radio (these are most often included with the radio, but always please specify). In addition to the ears, we will also need a frame sized 2 DIN, which will no longer be included with the radio. It must be purchased separately for each vehicle. It is very advisable to treat the places of fastening and contact of the plastic of such a frame with an anti-creaking composition, otherwise not very pleasant squeaks will be produced in the cabin; they will not appear immediately, but over time.

So, with the installation of the radio, everything is more or less clear (for those who are not very clear, watch the video of installing the 2 din radio below). Now we need to look at the connection diagrams for the 2 din radio, and also figure out its pinout.

Connection diagrams for 2 DIN radio

Most Chinese 2 din radios from Aliexpress are connected to the car via an ISO - Euro connector. This is the most universal connector and the easiest to connect to almost any car. And the pinout is quite logical and simple.

Pinout of ISO - Euro connector of Chinese 2 din radio from aliexpress (example - Podofo - 7018B). Similar radios with an ISO connector will have the same pinout.

Designation of wires of a Chinese 2 din radio

But there are other connectors often used on Chinese radios. I suggest you familiarize yourself with their pinout and subsequent connection

Pinout of 2 din radio from China

The meaning of the 2 din connectors of the radio

Meaning of 2 din radio wires

Connecting tulips 2 din radio

Video - examples of connecting 2 DIN radios

Connection diagrams are, of course, good, but it’s much more clear to see how someone has already gone before you by connecting a 2-din radio to a standard place and made a fairly sensible video about it. So, I suggest you familiarize yourself with the most outstanding works of connecting radio tape recorders that are only available in the YouTube collection.

Connecting a 2 din radio using the example of a Lada Priora

Connecting a 2 din radio in a Kia Rio or Hyundai Solaris

Connecting a 2 din radio in Renault Logan or Sandero

Connecting a 2 din radio in a Toyota Corolla 120

From the videos it follows that there is nothing particularly complicated, except for partial disassembly of the car’s dashboard, connecting a 2 din radio to its standard location is no different. You just need to buy everything you need, understand the connection diagram and pinout of the radio, as well as the wires, and slowly connect everything. This process will not present any problems for any more or less handy person.

How to connect a camera, phone and steering wheel buttons to a 2 DIN radio

The issues of connecting steering wheel control buttons, a rear view camera and synchronizing a phone with it to a Chinese 2 din radio are so extensive that one article is not enough to discuss these topics. Therefore, we decided to break these topics down into the following articles:

Diagnostics with ELM-327 scanner

Thanks to Chinese engineers, car diagnostics have become much easier and cheaper. Not long ago, a universal internal combustion engine scanner appeared on Chinese websites, which is suitable for almost all cars with OBD-2 connectors.

The ELM 327 scanner on the AliExpress website costs from 5 to 10 dollars, depending on the version.

This gadget is divided into two types and you should pay special attention to this when purchasing. ELM 327 works with our domestic cars only on version 1.5

Therefore, you need to purchase an ELM-327 v1.5 scanner. If you purchase version 2.1, then work with domestic cars is not guaranteed.

It should also be noted that this scanner only works in conjunction with a smartphone. If you have an Android smartphone, then you just need to buy a scanner with Bluetooth only.

If your smartphone is based on iOS, then you need to purchase a scanner with a Wi-Fi module, since Apple smartphones do not allow connecting third-party devices via Bluetooth.

Tips for installing a radio in Lada Priora

In order to avoid unforeseen difficulties during the installation of the radio in the Lada Priora, it is recommended to use the advice of experienced car enthusiasts:

1. Before installing the radio, you need to thoroughly study the connection diagram for media devices. If the player's connectors are connected incorrectly, there is a high probability of failure of some vehicle systems;
2. There are many models of radios from different manufacturers. Some of them have individual connectors with an additional adapter included for the ISO standard. This fact should be taken into account when choosing an audio device for the Lada Priora, since one of the connection options in this situation would be cutting the wires and directly soldering them to the car’s wiring;
3. When directly connecting the standard radio, you can use special terminals;
4. The connection diagram for the audio player via ISO will remain the same when replacing the radio with a new one.

Do not twist or wrap electrical tape to connect wires directly. How to check the thermostat without removing it from the car. 2 years ago. How to change a Renault Logan. This type of insulation is dangerous when operating a car in winter, since at low temperatures the adhesive-based tape is deformed and destroyed, which will lead to a short-circuit in the car's wires.

We will talk about how to install a Clarion radio of double height instead of two pockets in the center console of a car.

That is, there is already a 1 DIN hole (a pocket or glove box is inserted there, scientifically) in the car, and a radio of the same size can be installed there without any problems. This standard has been adopted for a long time and most automakers comply with it. But installing a double-din device is a task for the Master.

Kia Rio

To set up navigation on a Kia Rio car radio, the purchase kit must include a program and license keys, with which the programs/maps themselves are activated, as well as a software user manual. Check in the satellite settings menu whether the GPS receiver is turned on. You can also use the auto-detection function. Those. Setting up the standard Kia Rio radio is very easy.

Solaris, Aveo

Huandai Solaris and Chevrolet Aveo are equipped with MSTAR car radios based on the Android platform. It allows you to connect all available peripheral devices. Setting up the standard Solaris radio will not take much time.

Everything is easy to set up and convenient to manage. The interface is written in Russian, has a high resolution display, has a control mode while driving, as well as a voice mode and auto-on. The 8-inch screen allows you to watch movies, Internet television, and also has other capabilities. In addition, you can install any other programs that are necessary for use. Setting up the stock Aveo radio will help make the car even more comfortable. The car radio set includes everything you need, and they are all equipped with a GPS and Glonass module. All this makes the car convenient to use; traffic and location functions make it possible to calculate the optimal route.

Review of the standard radio (mms) of Lada Granta, Kalina 2 and Priora (luxury)
