About tire sizes for Lada Largus

January 29, 2015 Lada.Online 411 837 98

The size of tires and wheels not only adds style to the car, but also greatly influences the vehicle's performance on the road. Each manufacturer indicates acceptable standard sizes, and AVTOVAZ is no exception. In this review, we will look at the wheel size of the Lada Largus.

Usually, the manufacturer, depending on the modification of the car, indicates several acceptable wheel sizes, Lada Largus is an exception. The instruction manual indicates the only wheel size for all trim levels: 185/65R15 . Lada Largus wheel parameters: 6Jx15, offset (ET) for R15 = ET50. Wheel hub bolt pattern 4x100. Everyone knows that the Lada Largus is a 2006 Dacia Logan MCV adapted for the Russian market. The technical characteristics of the foreign car indicate exactly the same wheel size.

Based on reviews and surveys of Lada Largus car owners, we can summarize:

1. The most popular tire size with a diameter of 14 inches turned out to be 185/70R14 , by the way, it is indicated in the table with tire pressure. Another less popular option is 165/80R14.
2. The majority use the standard wheel size 185/65R15 . Another popular size of the same radius is 195/65R15 . A few installed 205/60R15 and 195/60R15 tires on their cars.
3. Fans of larger wheels install tires: 205/55 R16 , 195/60 R16 and 195/55 R16.
4. R17 wheels: 205/50R17 , 205/45R17, 225/45R17 or 215/50R17.
5. Exclusive sizes: 215/35R18 and 215/40/18.

R is not a radius, but a designation of the radius of the tire, and the number is the diameter of the rim in inches. The most popular wheel sizes are shown in bold.

When choosing wheels, you should take into account the full diameter of the wheel; it should not differ much from the standard one. Compatibility table:

Green indicates the minimum deviation of the wheel diameter (up to 3 mm); Orange indicates a diameter deviation from 3 to 6 mm.

Don't forget about the rim width:

Wheels and tires from the factory

The following drives are installed in the new Largus:

• 6Jx15 ET50;
• 6.5Jx16 ET48 (Cross version).

The above is deciphered as follows:

• 6J (6.5J) is the width of the rim (measured in inches);
• 15 (16) is the seat size (diameter) of the rubber (measured in inches);
• ET50 (ET48) – disc offset (in millimeters).

Lada Largus Lada Largus Cross
In the table you can find out some of their characteristics.

Now let's look at the tires that are installed from the factory on new Largus, they have the following parameters:

• 185/65/R15;
• 205/55/R16 (Cross version).

These parameters are deciphered as follows:

• 185 (205) – profile width (measured in millimeters);
• 65 (55) – profile height (indicated as a percentage of the width);
• R – radial cord winding is used;
• 15 (16) – tire size (diameter) (measured in inches)

Wheels for cars

Lada Largus is a station wagon with increased capability for transporting cargo. The car was released in 2011. The basis for the car was the Dacia Logan model, which is produced in Romania. "Largus" immediately became quite popular among car enthusiasts due to its increased capacity, low price and ease of maintenance.

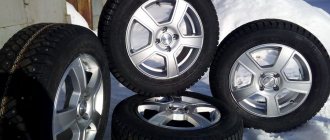

Original alloy wheels "Lada Largus"

For any vehicle, wheels and tires are more than just a design element. It is on them that the behavior of the car on the road depends as much as possible. It is customary for all car manufacturers to indicate recommended dimensions for all their models. The AvtoVAZ concern is no exception.

Important!

Acceptable dimensions and parameters for wheel rims are specified to protect vehicle owners from the risk of negative impacts that may occur when installing incorrect spare parts and components.

However, it is not always and not among all manufacturers that it is customary to indicate the permissible dimensions and parameters of wheels. Often there are several options listed without specifying the minimum and maximum allowable ones. For example, in the official instruction manual for the Lada, the parameters of the wheels on the Largus are indicated in only two options:

• The usual model of the Largus station wagon should be equipped with products with a radius of R15.
• The all-terrain model "Largus Cross" is equipped with wheels size R16.

Note!

When installing products that are larger or smaller than the permissible dimensions, they may affect the ABS anti-lock braking system.

The AvtoVAZ concern does not recommend installing wheels of other sizes. Basically, they are replaced when the season changes, possible damage occurs, in which it is undesirable to use the product. In this case, replacing the disks with identical ones is explained by traffic safety.

Wheels for Lada Largus R15

Many car enthusiasts prefer to install large rims on their cars. This mainly happens to improve handling, dynamics and appearance.

Installing unsuitable wheels can affect the following characteristics:

• traffic safety;
• warranty conditions for the car, if the period has not yet expired;
• high-quality work of parts and suspension units;
• wear of chassis parts.

On a note.

As for the warranty conditions, for the Largus Cross car it is clearly stated that when installing wheel rims of other sizes, the warranty on the car becomes invalid.

Since the car has become quite widespread on the roads of the country, there are many offers for the sale of wheels and tires for it. In the original configuration, the Largus is equipped with stamped wheels. In this case, many car enthusiasts are not satisfied with the appearance and characteristics of the car in motion. Then the stamped products are changed to cast or forged. Wheels on Largus size 15 are the only ones provided by the manufacturer, regardless of whether they are stamped or cast.

You might be interested in ATV wheel disc

The Largus Cross model, even in the basic configuration, comes with installed cast parts.

Original alloy wheels on Largus Cross

If the owner has decided to replace the wheels, then there is plenty to choose from. The market offers stamped, cast and forged products of various sizes, colors and designs.

Car enthusiasts have the opportunity to purchase both original rims from the manufacturer and all kinds of replicas or used products. Various global manufacturers of cast and forged products are widely represented. These can be very popular, high-quality and expensive brands or lesser-known inexpensive ones.

As for seasonality, professionals recommend installing products with a smaller width and diameter for the winter. This is done to provide a higher level of stability on slippery roads and in bad weather. In the warm season, the size of wheels and tires does not play such a fundamental role. On the contrary, to get maximum stability and controllability, you need to choose wheels of larger diameter and width.

On a note.

You should pay attention to the following points: as the diameter of the disk increases, the height of the tire profile should be reduced. This is done to ensure that the wheel in the arch fits within the acceptable dimensions. In this case, the ride will be less comfortable, but the level of handling will increase and the appearance of the car will improve.

Pressure and other parameters

Recommended tire pressure:

• 2.4-2.6 MPa (for R15 in the simple version);
• 2.5 MPa (for R16 in the Cross version).

You can also find another designation on the rubber, which indicates the following characteristics:

• load index;
• speed index.

The first (two or three) digits indicate the load index per tire, and the Latin letter indicates the maximum speed tolerance. In our case, these could be the following values.

• 92H – 630 kg. and 210 km/h. (relevant for simple versions of Largus with R15);
• 88T – 560 kg. and 190 km/h. (relevant for simple versions of Largus with R15);
• 91H – 615 kg. and 210 km/h. (relevant for the Largus Cross version with R16);
• 91V – 615 kg. and 240 km/h. (relevant for the Largus Cross version with R16).

How to choose alloy wheels

For the Largus Cross car model, there are many different variations for installing wheel rims. They vary in manufacturing methods, shapes, cost and design.

The characteristics, price and controllability of the machine depend as much as possible on the method of production of the products. For Lada Largus Cross, wheels are made from the following materials:

• Steel. Conventional stamped products are made from it.
• Aluminum and magnesium. Cast or alloy wheels are made from these materials.
• Titanium. In combination with aluminum and magnesium it is a raw material for the production of forged products.

As for the price, stamped wheels are the cheapest. Cast ones are considered more expensive and of higher quality. And forged products provide maximum strength and wear resistance. They are also the most expensive in the list of products presented.

In this case, forged wheels have the minimum weight and maximum strength characteristics. They have long been known for their use in auto racing and have become widespread in the automotive industry. But the forging process does not allow creating a variety of shapes and textures, so such products are limited in design solutions.

Stamped steel wheels can take any shape. Their prices also please car owners. However, high weight and low characteristics negate all the advantages of this manufacturing method.

You may be interested in this About wheels on UAZ cars

Casting is another matter. The process allows you to create products of any shape and texture. In terms of weight and strength, these products are slightly inferior to forged ones. But the ability to create a product of any size, width and shape quite cheaply makes these products extremely common on auto store shelves.

You can choose cast products for the Largus Cross machine from a wide range. Products from many brands of various colors, parameters and sizes are presented. The most famous companies Sparco, MOMO and Enkei are famous for their quality. You can choose cheaper products.

Alloy wheels are highly resistant to possible damage. Also among the advantages is light weight, due to which the car has greater dynamics and better handling.

Selection of Lada Largus FL wheels

Very often there are options when users install disks of the same width, but with a larger diameter, or a slightly increased width and a standard diameter.
It is worth noting that such solutions have a certain risk and definitely need to be tried on to make sure that the new disk with tires (it is selected according to the parameters of the new disks) do not touch or rub other elements of the car, maintaining gaps.

The bolt pattern parameters remain unchanged in any case. Also, when tuning, various types of adapters and spacers are sometimes used, however, AvtoVAZ specialists do not recommend resorting to such measures.

It is best to stick to the factory parameters, this definitely guarantees safety and comfort; also, wheels with parameters for the Cross version are quite suitable for the regular version of Largus.

There are a lot of disk options, and they can be easily selected both by model and parameters. There is no point in highlighting any special options, since discs are a matter of taste. Just as an example, we can cite several options that were seen on the Lada Largus:

• K&K KC866, article number: r74595SK;
• SCAD Shark, article number: 1690505;
• K&K KC733, article number: r71667.

Among larger disks, the following parameters are most often found:

• 195/60 R16;
• 205/50 R17;
• 215/40 R18.

Which summer tires are best for Largus Cross cars?

Choosing summer tires for the Largus Kross
Tires on the Largus must necessarily correspond to the standard size of the wheel structure.

When choosing, the speed and weight index, brand and tread pattern are taken into account. The production date of the products plays an important role - if they were made more than 5 years ago, it is better to refuse such a purchase.

You may be interested in: How to properly seal a cut on a car wheel with a tourniquet

The pattern is divided into two types: asymmetrical, directional and symmetrical. The last option is considered the most popular. Since the symmetrical pattern is suitable for most cars. This option is considered as the most convenient for moving around the city. The main reason for choosing this pattern is low cost.

The directional tread pattern allows car owners to drive off-road, providing ideal directional stability and handling. Unfortunately, there is some noise when driving off-road.

Important!

The asymmetrical pattern has better characteristics. This option helps ensure ideal directional stability and reduce the risk of aquaplaning. These products have a high price.

When replacing wheel structures, it is necessary to select standard models. When installing large components, you will have to choose the appropriate tires with a low profile. To move on a flat road, it is better to use low-profile tires. This tire improves dynamic performance and handling.

Frequency of checking tire pressure

The tightness of the wheel structure is not ideal. The air gradually comes out. The reduction in pressure directly depends on the air temperature.

Monitoring must be regular. It is optimal to check your blood pressure at least twice a week. Ideal when leaving a parking lot, visiting a gas station, or performing maintenance.

The pressure in the tire should be lower than in the other wheels.

Visual assessment of the condition of tires is an irresponsible attitude towards the vehicle and safety. There is a high risk of not noticing a slight decrease or increase in pressure (0.1-0.5 atmospheres).

In the following situations, it is recommended to reduce the atmosphere to a level lower than the factory instructions:

• when driving on a slippery road (in winter);
• for off-road driving.
