A voltage regulator is a device that changes the electrical voltage at the output of an electric motor when it receives a control signal. The VAZ 2114 voltage regulator is built into the electric generator and provides stabilization of the output voltage by changing the excitation current in the generator.
Generator brushes VAZ 2114
Three-level voltage regulator
Hello everyone, today I will tell you about the “three-level voltage regulator”.
From the moment I bought the car, the voltage in the on-board network constantly sagged and sagged quite a bit, in the summer it was normal, but frost came, I changed the battery every two weeks, it was completely discharged.
It was decided to take a working bush generator, install it and drive it. We installed it, the result is a little better, but the voltage in the on-board network still drains, especially when the rear heating is turned on.
Then I started scratching my... turnip =) After climbing around D2, I saw that almost everyone suffers from such garbage and I saw “three saving words” - this is a “three-level voltage regulator” from the manufacturer “Energomash”.
Armed with a pen and paper, I began to call the entire city of Voronezh in search of “TRN,” but after calling 30-40 stores and hearing in almost every store “We have them, but they sell out very quickly,” I almost lost hope in the search.
But still…
I found it in the BB store and it was the last one. I picked it up from the window.
Having installed “TRN” all the problems disappeared, namely:
Now I have it on MAX showing 14.8-14.7 at Bright Light. heater on, music and rear window heating
The joints have disappeared:
— The alarm began to open well in the mornings, before it was cold when I had to open it with a ruler.
— The low and high beams began to shine brighter. — All the light bulbs in the cabin and outside began to shine brighter. — The stove is in the first position, almost blows away the driver and passengers =) — The windows have become faster. — In the morning it starts the first time. — The battery is always charged!
I advise everyone! Put it on for 5 minutes!
Voltage regulator for VAZ 2114: purpose, cost and replacement procedure
The vehicle's electrical system is extremely important for its proper operation.
Electricity works from the very beginning: when you turn the key in the ignition switch of a VAZ car, the electric starter turns the crankshaft for the first time. But a car is not a wall clock in which the battery can be changed once every few months; a car battery needs constant recharging. This function is performed by a direct current generator, which takes part of the power from the engine to perform its work. But, like any complex unit, it can give certain errors, but so that the voltage spread does not exceed 0.1 - 0.3 V and the generator always has an output within 13 V, a special VAZ voltage regulator is installed. Today we will understand what its purpose is, its structure and possible problems in the operation of the car due to the relay.
Voltage regulator VAZ (Three-level)
Unsustainable breakdown - hurry up with repairs!
It would seem that there is something wrong here - there is not enough tension. The car runs on gasoline, not electricity. However, a lack of current power leads to an increase in fuel consumption, a decrease in engine power, and some electrical appliances stop working altogether and will require replacement in the future. This is especially noticeable in the dark, when many power supply devices are used.
The first sign of lack of voltage is dim high beams - their lamps require a large number of watts. In most cases, it turns out that the battery is poorly charged.
You can deal with this problem easily and quickly by charging it properly. However, sometimes this doesn't help. Look under the hood - the battery terminals may be loose or oxidized. If in a parking lot the current still maintains a constant voltage, then during driving, due to vibration, the terminals may move away, opening the circuit. To fix the problem, you need to thoroughly lubricate the fasteners and tighten the bolts; sometimes only replacing the old terminals with new ones will help.
PURPOSE AND TECHNICAL DEVICE
The voltage regulator relay has a specific task - to stabilize the current in the vehicle’s on-board network at the same level. In his work, he takes into account the following factors:
- Load on the network (total electricity consumption of already switched on devices);
- Temperature around the car and in the engine compartment;
- Rotor speed of the generating device.
The voltage regulator of the VAZ 2114 generator is also required to monitor the voltage that comes out of the generator in order to maintain the normal operation of all devices, since disturbances in the electrical network can provoke inaccurate sensor readings, at a minimum. Technically, it works like this: in the event of noticeable disturbances, it constantly monitors the current on the battery, and at the right moment simply turns off or turns on the voltage that is fed into the excitation winding of the generator itself.
Voltage control and stabilization - operation of the regulator
Useful video
You can get additional information on this issue by watching the video below:
- Repair of VAZ 2114 stove: radiator (heater) and other components
- On-board computer VAZ 2114: purpose, functions, main errors
- VAZ 2114 ECU: types, operating principles and diagnostics
One day the car stopped starting from a dead battery, I charged the battery and drove it for 3 days after which it was discharged again. At that time I was still just a novice motorist, so I immediately thought that the battery was faulty, I bought a new one in the store, brought it and installed it, literally 5 days later the car would not start again because the battery was dead. I went to the store and demanded a replacement, after much persuasion from the manager, they finally agreed to replace the battery. Well, history repeated itself, then I realized that I had to go to a car service center; they didn’t tell me about the generator malfunction. This is how I unknowingly killed a lot of nerves and time.
Hello. This article explains in simple terms why a diode bridge is needed in a VAZ 2109 -2114 generator, signs of a diode bridge malfunction and how to check a chocolate bar on a VAZ 2109 - 2114 generator (a chocolate bar is also a diode bridge).
POSSIBLE PROBLEMS
If problems arise with the generator, for example, if the on-board voltage of the VAZ 2114 is low, then possible faults should be sorted out in the following sequence:
- Mechanical damage to the relay terminals;
- Oxidation of contacts;
- Complete absence or poor contact between the generator housing and the vehicle’s ground.
Therefore, if you have problems with the regulator, then the first thing you need to pay attention to is this terminal, which goes to ground.
Voltages must only be measured with the ignition on, or you will fail.
To make a correct comparison, you first need to measure the voltage at the positive terminal of the battery; it should be the same as at the regulator ground.
By the way, all electronic regulators that were invented back in Soviet times were free of most of these shortcomings. Their design was somewhat more perfect, but they were forgotten at one time and later moved away from their production.
Basic problems
There are several main problems specific to a generator. If you study them, it will be quite possible to carry out repairs even on your own.
We will list them and also tell you about the necessary additional actions to eliminate them.
Such breakdowns occur quite often, so they cannot be ignored at the first sign. Having understood the structure of the generator, solving problems with its malfunction becomes much easier.
Where is he located
Before removing the generator, you need to at least figure out where this device is located.
This is exactly where the desired element is located.
Functionality check
If the generator does not work correctly, the consequences can be unpredictable. If the charge coming from the device is low, the battery will quickly run out and your VAZ 2114 will simply stall. High voltage is even more dangerous because it damages the entire electrical circuit of the car.
The power indicators of the generator can be measured using a tester.
- Turn the ignition on and make sure all the lights on the dashboard come on. After this, start the power unit.
- If the battery icon lights up on the panel or blinks dimly, there is damage to the alternator circuit.
- Warm up the engine to approximately 90 degrees, then turn on all volatile devices.
- Connect the tester directly to the battery. The second person at this moment will press the gas pedal and keep the speed in the region of 3.2-2.5 thousand revolutions.
- When the tester reads 13V, the generator is working properly.
- Now turn off all power consumers and take measurements again. The revolutions are kept the same. If the generator is working properly, the tester readings will be 14.7V.
- At the same time, we recommend paying attention to the sounds that come from the generator. If there is a hum, there is a high probability of bearing wear, which should be replaced.
PRICE CATEGORIES
To find out the cost of a voltage regulator for a VAZ 2114, it is advisable to simply go to the nearest car market and ask, the price range may vary. This factor is influenced by the type of components and the region in which the store is located.
Typically, the price of a two-level standard regulator, which is installed at the factory in the VAZ 2114 and their families, can range from 300 to 1200 rubles, here the reason for the fluctuation depends on the quality and the specific manufacturer; more reliable and high-quality options will always be somewhat more expensive than their low-quality counterparts. As for three-level models, their price starts from 1,500 rubles, but their productivity is much greater. During the purchase, it is advisable to immediately ask the seller to check the functionality so that there are no problems in the future.
THREE-LEVEL REGULATOR
Replacing the regulator with a new one in the event of a serious breakdown on your own is quite simple, the main thing is to install the brushes correctly. This option is also very common when drivers deliberately choose a three-level VAZ 2114 voltage regulator for their car. Its installation must be carried out correctly; here it is important to correctly rearrange the generator protective casing and switch the contacts on the terminals. It may be better to initially seek help from specialists so as not to damage the entire generator. Technically, it differs from a typical relay in that it has a more efficient voltage regulator that maintains the voltage at a stable level at all times, even under rapidly changing conditions. The factory has not yet come to install such a regulator, since this option is considered more expensive.
REPLACING THE REGULATOR WITH A NEW OWNER ON YOUR OWN

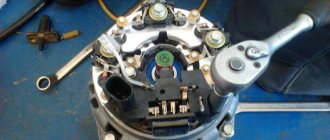

Now we need to figure out how to replace the VAZ 2114 voltage regulator. First, you need to understand that it itself is located inside the generator housing. Mechanically, it consists of a special armature, an electromagnet and a relay. To disassemble the generator and remove the regulator we will need the following necessary tools:
- Set of open-end wrenches;
- Various screwdrivers.
Typically, repairs involve a complete replacement, but the generator itself does not need to be completely removed from the car. However, first you need to remember to remove the terminals from the battery, 12 V is not much, but it will be unpleasant to get hit. After the car has been de-energized, you need to remove the caps from the generator terminals and unscrew them with a screwdriver. Now you need to carefully remove the protective casing from the generator; on the VAZ 2114 it is equipped with spring latches; it is important not to break them right away. Now the voltage regulator of the VAZ 2114 generator will be visible under the casing; you need to unscrew its fastenings and pull it out of the seats along with the brushes.
The next phase of our work will be to check its functionality. Now let’s figure out how to understand that the voltage regulator is not working, for this we will need the following components:
- Accumulator battery;
- Miscellaneous wires;
- An ordinary 12 volt lamp, anything from the car's network will do.
You need to immediately understand that checking the regulator should be carried out only together with the brushes.
The light bulb itself must be connected via wires to the generator brushes; the polarity of the wires does not matter. Now you need to figure out where the negative terminal of the battery is and connect it to the relay body, and the second one must be connected to the regulator terminals. If everything is done correctly, the bright light from the light bulb will be a sure sign that all elements are working properly. You also need to know that testing the functionality of a new regulator is carried out in exactly the same way. After the repair is completed, everything must be assembled strictly in the reverse order, and it is advisable to charge the battery during the repair so that it does not lose its charge.
Why change brushes?
If signs of brush breakage are detected, they should be replaced. If repairs are not carried out in a timely manner, there is a possibility that you will soon need to purchase a new generator, and this is a completely different expense. The battery can only hold the ignition without brushes for a few minutes, which means it will have to be constantly charged. And soon it will be replaced.
You can check the condition of the brushes by the size of their protrusion from the seat. If the protrusion size does not reach five millimeters , then they should be replaced immediately to avoid possible problems.
It is recommended to replace it every 50,000 km or every season, which is the key to safe operation of the vehicle. It is better to have a spare set of spare parts so as not to get into an unpleasant situation on the road and then call a tow truck.
For a set of brushes you will need to pay from 150 to 200 rubles, depending on the store. The cost of repairs at a car service center will cost 200-300 rubles, inexpensive, of course, but why pay for something that you can do yourself?
Three-level voltage regulator for a car
Not long ago, I learned about a three-level voltage regulator and decided to install it on my car, since with a standard regulator, which is installed as standard, the battery is not fully charged, and you have to periodically recharge it from a charger.
Why do you need a voltage regulator?
The output voltage of the generator depends on the speed and current supplied to its rotor. If you connect power to the rotor and do not control it, then as the speed increases, the voltage at its output terminals can rise so much that all electrical consumers on the car burn out.
Since the engine speed varies over a wide range, the output voltage can only be controlled by changing the current in the rotor winding. This is exactly what a voltage regulator does. It monitors the voltage at the generator output and if it is higher than required, it reduces the pulse width supplied to the rotor winding, and vice versa increases the pulse width when the voltage decreases.
The standard voltage regulator (using the VAZ 2107 as an example) produces 13.6 volts. And if you turn on the load, it will sag and the battery will not be able to fully charge. It will need to be periodically recharged from a charger, otherwise its service life will decrease.
After starting the car, the battery needs to recover the energy it gave to the starter. To do this, the engine needs to run for a certain time. When the generator voltage decreases, this time increases. Therefore, when driving short distances from work to home, the battery cannot be restored.
