How to change the hood cable of a VAZ-2107 yourself

The hood is an integral part of any car. On the VAZ 2107 it is locked using a mechanical lock and opened using a cable coming from the passenger compartment. Despite the simplicity of these parts, they fail over time. To carry out repairs, you need to know what sequence of actions will need to be performed.

• Hood dimensions
• How to soundproof a hood
• Installing the air intake on the hood
• Hood adjustment
• Hood stop

  Photo gallery: installing a gas stop on a VAZ 2107

• Video: installing the hood gas stop on a VAZ 2107

• Hood lock VAZ 2107

  Lock device

• How to adjust the hood lock

  Photo gallery: adjusting the hood lock of the VAZ 2107

VAZ 2107 hood cable replacement

The hood lock of the VAZ 2107 has a fairly simple structure and consists of the following parts:

• stamped steel body;
• return spring;
• hood ejector;
• cable (wire or regular);
• interior handle.

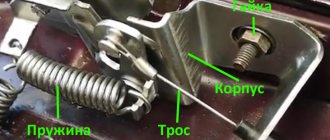

Hood lock device

Despite such a simple structure, it is periodically necessary to repair some parts and adjust the operation of the mechanism. Often, adjustment is necessary when there are problems with closing or opening the hood. If any of its components break, it is necessary to replace the lock with a new one. It is also not uncommon for the cable to break, in which case it is replaced.

How to adjust the hood lock

If for some reason the hood of your car does not want to close normally or there is a slight or noticeable knocking sound when driving, then there is a need to adjust the lock in the vertical direction. All we need for this is just a 10 mm wrench and a screwdriver:

• loosen the nuts securing the lock to a small angle;
• move up or down to select the lock position;
• tighten the nuts and check the operation of the lock, repeat the steps again if necessary.

When adjusted correctly, the hood should close and open well, without much effort. In good condition, the hood should close completely when lowered from a height of 30-35 cm.

Video on setting up the ejector, the hood does not “fly out” when opening

How to temporarily solve the problem

If the place where the cable breaks is located at a distance from the locking device, then usually its tip is threaded through the plastic grille of the VAZ-2107 hood.
If necessary, unlock the lid. It is enough to pull on it. But you won’t be able to be satisfied with such a solution, because this method is completely inconvenient. Therefore, the hood will have to be repaired. Buy a new cable and install it in place of the broken one. By the way, during the process it would not be superfluous to inspect the lock itself - usually its improper operation causes damage to the flexible traction element. The mechanism will definitely need to be replaced if it jams, is difficult to operate, or is too loose.

Hood lock VAZ 2107

A hood lock is one of the main means of protecting a car, reducing the likelihood of theft and disassembly of the vehicle into parts. The VAZ 2107 is equipped with a mechanical lock, which is opened with a special handle from the interior.

Lock device

The hood lock of the "seven" has a fairly simple structure and consists of a housing, a spring, an ejector, a cable and a handle. Despite the simplicity of the design, sometimes there is a need to adjust or replace the mechanism. Adjustment is usually needed when closing the hood is problematic. A new lock has to be installed if its elements are worn out, i.e. when the car is far from new. In addition, there are situations when the cable breaks, resulting in its replacement. All these points are worth dwelling on in more detail.

How to adjust the hood lock

The main goal that is pursued when adjusting the hood lock on a VAZ 2107 is to achieve its high-quality operation, i.e., there should not be any difficulties when closing and opening. If the mechanism does not lock the hood securely or requires a lot of force to open it, then adjustment will help correct the situation. The procedure boils down to the following steps:

1. Using a marker, outline the contours of the hood lock.
2. Loosen the two nuts securing the mechanism with a 10mm wrench.
3. Move the lock body in the desired direction, tighten the nuts and check the operation of the device.
4. If necessary, the sequence of actions is repeated.

Photo gallery: adjusting the hood lock of the VAZ 2107

Hood cable

The cable transmits the force applied by the driver from the hood opening handle to the lock. There are situations when the cable needs to be replaced:

• the cable moves with difficulty in the braid;
• several threads of the lock drive have broken;
• the lock rusted, which subsequently led to the cable breaking.

How to remove the cable

Before you begin replacing the hood cable, you will need to prepare the following list of necessary items:

• socket head or wrench 10;
• flat screwdriver;
• narrow nose pliers;
• marker.

Direct replacement of the engine compartment lid cable on a “classic” is carried out in the following order:

1. Open the hood.
2. The lock is circled with a marker so that upon completion of the work its location can be seen.
3. Remove the two clamps that secure the cable to the body. It is best to use a flat-head screwdriver for these purposes.
4. The edge of the cable is aligned with narrow-nose pliers, after which the fixing sleeve located on the flexible element is moved.
5. Remove the cable from the fastener on the lock.
6. The lock is dismantled by unscrewing two 10mm nuts with a key or socket and removing the mechanism.
7. Inside the car, use narrow-nose pliers to remove the cable from the braid.
8. Find a rubber seal in the engine compartment and remove it using a flat screwdriver. Next, remove the cable sheath.
9. The hood cable that had become unusable was removed.

Video: replacing the hood cable on the “seven”

How to install a cable

After completing the dismantling of the hood cable on the VAZ 2107, you can install a new part. The whole process is done in reverse order:

The lock drive is inserted into the hole in the lock control handle.

How to open the hood if the cable is broken

A broken hood cable on a 7 is one of the unpleasant moments that can take the owner by surprise. The situation is difficult, but solvable. There are several options that will resolve this problem, so let's look at each of them.

1. Broken cable near the lock drive handle. This type of breakdown is one of the simplest, since using pliers you can pull the flexible element and open the lock.
2. If the cable does not break near the lock or lever, you can try to remove it through the grille in the hood. To open the lock, you need to bend a hook made of stiff wire, thread it through the grille and pull the lock drive with pliers. To make the procedure easier, it is recommended to press the hood down in the area of ​​the locking mechanism.
3. The lock drive can be pulled not through the air duct, but into the space between the body and the hood. In this case, the engine compartment lid is raised as much as possible, for which you can use a wooden block of suitable size: it will prevent the hood from returning to its place. To avoid damaging the paint coating, the wooden part is wrapped in rags. After removing the cable, all that remains is to pull it.
4. If the lock drive breaks directly next to the mechanism, then attempts to remove it will not give any result. Since the hood lock on the VAZ 2107 is located near the windshield, the only thing left to do is to try to hook the lock mechanism with a wire loop at the place where the cable is attached and pull this part. The procedure is not easy, but sometimes in the current situation there is no other way out.

Main stages of repair

Before moving on to the instructions, we will tell beginners that if time is short, the broken cable can be pulled through the hole in the hood, covered with a plastic grill. Of course, the method is artisanal, but with such non-standard methods our ancestors won the war against the Germans. In this way, you can open the hood constantly and save 50–70 rubles on repairs. But if the “innovative” method is not for you, we won’t languish any longer. Here are the promised step-by-step instructions. As an example, we take the VAZ-2109 car. We will conditionally divide all activities into two stages - disassembly and installation.

To work, you will need a 10mm wrench and a flathead screwdriver.

1. We remove the ends of the clamps from the holes and release the cable from the fastenings.
2. We move the sleeve and disconnect the cable from the mechanism.
3. Pull the cable out of the handle.
4. We remove the casing.

Assembly and installation stage:

1. Insert the cable all the way into the handle hole.
2. We put on the casing.
3. We fix the end of the cable with a sleeve and bend it.

We check the operation of the entire mechanism. We pull and release the handle several times. If the amplitude of the lock has changed, we adjust the mechanism. At the end of the work, we treat all parts with machine oil.

The unanswered question remains: how to change the hood cable of a VAZ-2107? The disassembly and installation procedure is the same as for the VAZ-2109 car.

Before you begin replacing the cable, inspect the location of the damage. Perhaps the break occurred due to a defect in the lock itself; if so, change that too.

How to replace a cable

No special measures are required prior to the replacement itself.
The only tools you need to prepare are a 10mm wrench and a flat-head screwdriver. Next, fold back the hood lid and lock it in this position. Now you need to remove the plastic clamps from the holes intended for them. This is done with a screwdriver. As a result, the cable will be released in the area between the engine compartment and the car interior. Do not use much force to avoid damaging the paint layer.

Now go to the castle. Here, move to the side the bushing that prevents the bent tail of the cable from straightening. Carefully align the tip of the latter and release it.

Using a 10mm socket wrench, remove the pair of nuts holding the lock in place. Before removing, be sure to outline the housing with a marker - this will avoid the need to adjust it after reinstallation.

In the engine compartment, find the end of the handle that opens the hood. Slide the protective cover and disconnect the cable in the same way as described above.

Now nothing prevents you from removing the damaged flexible rod.

Tools and algorithm for troubleshooting cable faults

Since the design of the VAZ 2107 does not provide for the presence of complex components and parts, to replace the cable you only need a 10-mm wrench and a flat-head screwdriver. Next, open the hood and perform the following sequence of actions:

• Release the cable. To do this, you need to remove the ends of the plastic clamps from the holes that secure the cable to the partition separating the interior from the engine compartment. The operation is performed using a flat-head screwdriver.
• Disconnect the cable. It is enough to straighten the bent end of the lock mechanism, then moving away the fixing sleeve.
• Disconnect the hood lock of the VAZ 2107 from the body. Having marked the previous location of the lock with a marker, you need to unscrew the two nuts securing the mechanism. This procedure will make it easier to install the part in place.

Hood lock VAZ

• Pull out the cable. The operation is performed from inside the car, since the handle responsible for opening the hood is located just below the dashboard of the car.
• Remove the casing. It is located in the hole in the partition that separates the engine compartment from the passenger compartment.
• Insert a new cable. This manipulation again takes place from the interior. A new product is inserted into the lock control handle, replacing the damaged part.
• Put on the cover. It is most convenient to perform this operation from the engine compartment of the car.
• Attach the lock to the place marked with a marker. If installed correctly and securely, no further adjustment may be necessary.
• Hook the cable onto the lock. Having secured the product in a tense state with the help of a sleeve, bend the end of the lock. This way, unwanted loosening of the cable can be avoided in the future.

If anyone has noticed, most cars have a cable-operated hood opening mechanism. Using a cable, the lock is activated, thereby opening the engine compartment lid. The product in question should be replaced not only when it fails, but also in the following situations:

• when opening the hood, a slight movement of the cable inside the plastic jacket is detected;
• if in order to operate the opening lever it is necessary to exert considerable force on the lever;
• when rust is detected on the lock of the engine compartment cover, which ultimately leads to rapid wear of the cable.

Installation

Next, it remains to install a working cable in place of the broken one. Here, the end on the side of the hood opening handle is first secured. Insert the element as far as it will go and secure it. Place the casing on the cable. First inject a little motor oil into it with a syringe for better glide.

Now the important point - install the lock in place. Attach it to the studs and place it exactly within the previously outlined limits. Tighten the nuts thoroughly. If done carefully, subsequent adjustments will probably not be necessary.

All that remains is to hook the rod onto the mechanism. The end of the cable is stretched with pliers, bent and clamped with a sleeve.

This completes the replacement. You just have to make sure that the element does not dangle. The check is carried out like this:

• invite an assistant;
• ask him to pull the handle out of the interior several times and then release it;
• If the latch slides all the way in and returns, then everything is fine.

When the tongue does not have enough amplitude, the cable will have to be tightened even more.

Purpose and causes of malfunction

Hood lock cable for VAZ 2107

Hood locking mechanism diagram

The cable transmits the force applied by the driver from the hood release lever to the hood lock. Situations in which replacement is necessary are listed below.

• Over time, the cable began to move poorly inside the plastic jacket.
• Several threads of the cable broke, as a result of which it became longer and the force simply did not reach the hood lock.
• The hood latch is rusty, its parts have lost mobility, as a result, the driver is forced to pull the hood opening lever harder, which ultimately leads to a break.

Functional purpose of a car hood

The traditional purpose of a car hood is to protect the engine compartment of the vehicle, which houses the engine. Such protection is necessary from the negative effects of external factors.

Car enthusiasts call the hood the cover of a car's engine compartment. It is made from various high-strength materials, such as steel, aluminum, etc. Due to this, in addition to its protective functions, its special shape increases the aerodynamic characteristics of the vehicle and absorbs the noise produced by the engine.

Hood lock device

VAZ classics from 2101 to 2107 provide for opening the lid in the direction from the windshield. Starting from the VAZ 2108, the unit opens in the opposite direction. These modifications to the cover did not affect the design of the lock: both the VAZ 2115 and the “kopek” are supposed to have the same parts of the locking mechanism with minimal changes.

The same standard cables are suitable for VAZs up to and including model 7. From the eighth model onwards, the length of the standard cable has been increased by 90%.

Main details (using example 2109):

• pin;
• cup lower, upper;
• safety hook;
• lock washer;
• latch spring;
• lock spring;
• hook axis;
• cable jacket;
• cable;
• pen.

The operating principle is extremely simple. When the lid is closed, the locking pin fits into the frame hole and is held in place by a spring. With the help of a cable from the handle of the assembly in the cabin, the pin is released, the hood bounces slightly, held by the safety hook. A second press on the cover removes the hook and the engine compartment opens.

VESKO-TRANS.RU

AutoNews / Reviews / Tests

Replacing the Hood Cable of a VAZ 2101

replacement exhaust cable VAZ 2107

Every year more and more foreign cars appear on Russian roads. They are represented by both moderate small cars and luxury sedans priced at several hundred thousand dollars. Despite this, in the last century, many people were and remain owners of a car made by Russian engineers. These cars include the VAZ 2107.

Cable VAZ 2107 hood

Naturally, there are models released in the early 2000s, and they are not immune to breakdowns. Some require 100 calls, but most are repaired by the owners themselves. Problems with the cable that controls the hood latch have become widespread. At first glance, such a malfunction can be easily eliminated, since there are many devices and the procedure itself is simple. But for new and experienced car enthusiasts, it is useful to familiarize yourself with some of the intricacies of replacing this part.

Recommended literature on repair and maintenance of the VAZ 2107:

Cable Tools and Algorithm

Since the design of the VAZ 2107 does not require complex components and parts, replacing the cable requires only 10 wrenches and a flat-head screwdriver. Next open the hood and follow these steps:

• Release the cable.
  To do this, remove the ends of the plastic clips from the holes that secure the cable to the partition separating the interior from the engine compartment. The operation is performed using a flat-head screwdriver.
• Disconnect the cable.
  Simply straighten the bent end of the locking mechanism by sliding the mounting sleeve back.
• Disconnect the hood lock of the VAZ 2107 from the body.
  When marking the previous location of the lock with a marker, you need to unscrew the two nuts that secure the mechanism. This procedure will make it easier to install the part on site.

Changing the CABLE THANK YOU VAZ 2101-2107

standard " cable"

"(the wire) does not always work perfectly.
But if you replace
this crap with really
cable
.

Korchen tuned hood, caps for VAZ 21011.

how simple and easy it is to change the hood cable

on
VAS
.

Locking the hood vase

The hood cable of the VAZ 2107 is broken, how to open it

The hood of the “seven” opens with a lever installed on the left under the dashboard. When everything is in order, this operation does not create the slightest problem. The question is “how to open the hood of a VAZ 2107?” occurs when the lock drive cable breaks or the lock itself fails. There is a way out of this situation, but how difficult it is depends on the broken part or the location of the break.

Functions of the hood of the VAZ 2107

The main purpose of the hood of any car is to protect the engine, ignition system and other components located in the engine compartment. It protects both from the negative impact of natural factors and from the actions of intruders. The strength and durability of the engine compartment cover of the VAZ 2107 is ensured by the fact that it is made from the same rolled steel as the entire car body. In addition to its protective functions, the hood improves the aerodynamics of the body and reduces the noise of a running engine. The engine compartment cover is attached to the front of the body with hinges. Closer to the windshield is a remote-operated lock that allows you to open it by pulling a lever under the dashboard. There are modifications or tuned versions of the “Seven” with an “alligator” type hood, when the hinges are closer to the windshield, and the lock is in front near the radiator.

If the hood cable of a VAZ 2107 breaks or the lock breaks, the driver is deprived of access to the engine compartment and the opportunity to carry out routine maintenance (for example, changing the oil) or repairing the car. Therefore, the ability to independently open the hood from the outside can be useful to every owner of the “Seven”.

Opening the hood if the cable breaks

VAZ classic lock drive diagram

If the traction cable has stretched out over time, and the plastic jacket has broken or slipped through, the traction cable itself has rusted and therefore does not move well in the shirt, the lock has become difficult to open or is simply frozen - in such cases, opening the hood lock of the VAZ 2107 in the usual way, using a lever, will not work A couple of helpful tips before you start opening:

• To make it a little more convenient for you to work, I suggest lifting the hood a little on the driver’s side and placing a centimeter (or even two-centimeter) wooden block or something like it; the block can be wrapped with a rag to preserve the delicate paintwork
• Through the resulting gap, you can successfully monitor what is happening in the engine compartment, then when you hook our pimp
• The main thing is not to overdo it with pulling the locked hood, so as not to break it, then the wire will no longer be needed and the cost of repair will increase
• The hood grille, the one through which you will fish for pimples, needs to be wrapped with tape or several layers of electrical tape, in the very places where you will insert the wire
• This measure will help you protect the hood grille coating from scratches and chips.
• After a detailed understanding of the essence of the issue, it turns out that you can open the lock on the hood of a VAZ 21074 with a broken cable in thirty seconds and a couple of attempts
• Until the moment of understanding what and how to do, it took two hours of attempts and trials, the most important thing was to figure out that the wire hook is bent upward
• There is zero information on the Internet about such a basic thing.
• Although people are constantly faced with such nonsense, both acquaintances and friends
• I’ll add an important clarification - if you pull the wire in the direction of the driver’s seat, as the standard cable pulls, then luck is on your side
• I hope the tips in this article will help you save a couple of hours of personal time and allow you to preserve the hood and its covering
